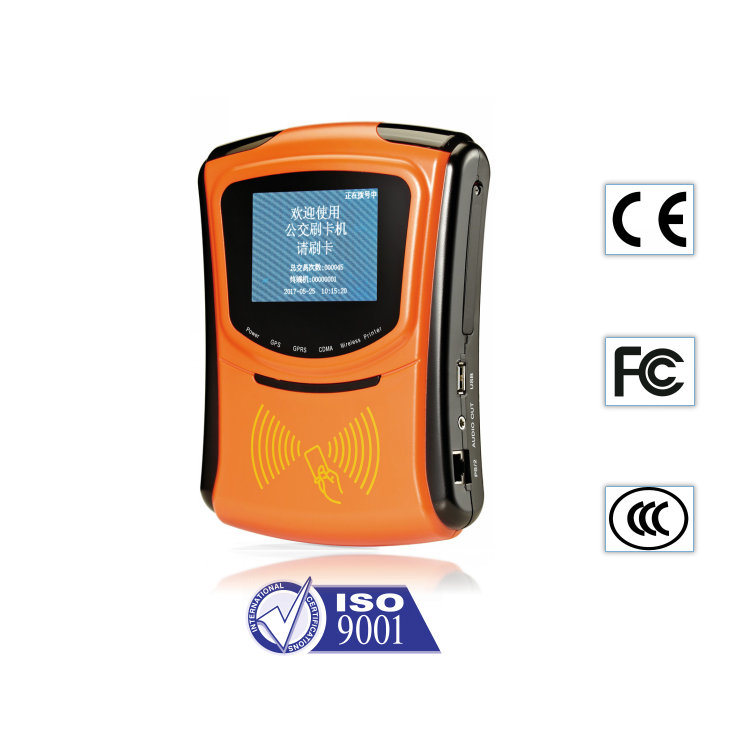

Bill Bus Card Validator Linux Based Point-of-Sale Terminal (HCL1306)
- Made of industrial grade material, Fully adapt to special circumstances on bus
- Sealed, dust proof, waterproof, shockproof and anti-electromagnetic interference
- Dedicated built-in voltage regulator module, voltage overload protection
- With the most advanced Linux system, high-definition LCD display
- WIFI Communication + USB data acquisition, support remote upgrading
- Contactless smart card, read/write capability, light display for reading card
- Live voice prompts, supports 15 kinds of voice prompts: such as "student card", "employee card"
- Support Mifare1 card, CPU card, support PBOC3.0 bank standards
- With Thermal printing module, can connect to POS58 slip printer
- Optional GPS positioning module, for global positioning satellite positioning;
- Great stability of data storage, data kept as long as 10 years even after power outage
- Card Capacity: 91,880,000pcs;
- Can check the nearest 20 records, to prevent ticket payment dispute.
| Model | HCL1306 bus POS terminal |
| Dimension | 200*151*61.5mm |
| Material | Engineer in Plastics,Anti static electricity coating design, be protected form high-frequency interference |
| Display | 3.5 inch LCD display,320x240 |
| Operating system | Linux 2.6 system |
| CPU | N32905 processor, ARM9 core @ 240MHZ |
| Memory | 32MBytes SDRAM, 128MB NAND Flash |
| Data capacity | 259840pcs of detailed data for console storage, unlimited data at GPRS storage |
| Card capacity | 91,880,000pcs |
| Black list | 91,880,000pcs (download thru PC with USB) |
| Working Voltage | DC 8V-50V |
| Operating temperature | -25ºC~65ºC |
| Storage temperature | -40ºC~85ºC |
| Humidity | 0-90% RH non condensing |
| Lighting | Red, Green light |
| Sound prompt | Buzzer, single channel speaker (voice report) |
| Voice report prompt | 16KHz,16bit single channel voice report prompt |

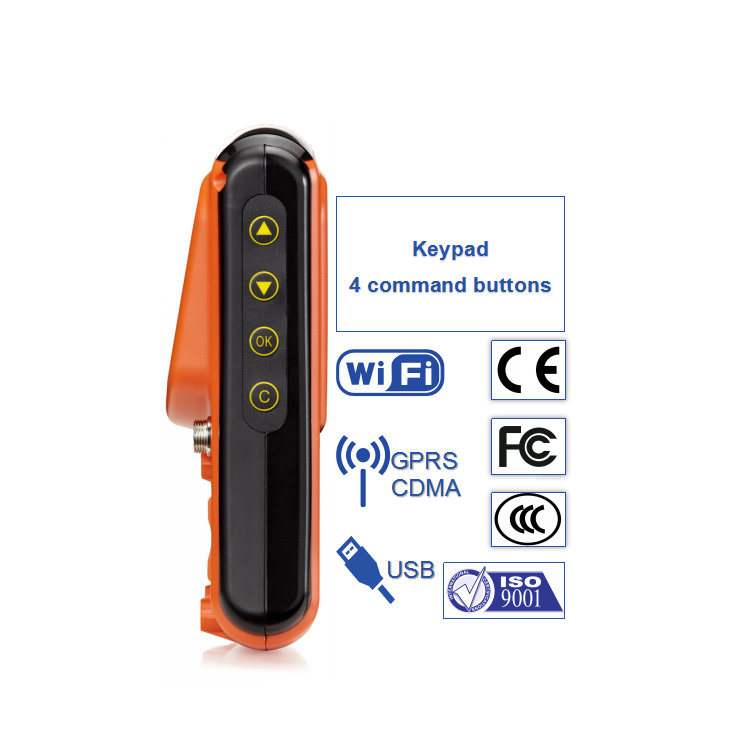

| Keypad | 4 command buttons |
| RFID | Can read and write ISO14443 TYPE A/B Electronic tag(Incl Combi-card) |
| Read card distance | 0~50mm |
| Supporting card | Mifare 1 card, CPU card, Union Pay IC card |
| Frequency | 13.56MHz |
| Interfaces/Connectors | RS232, USB |
| Printer modules | Can be connected to slip printer-POS58 |
| Width of receipt | Based on printer configuration |
| Positioning mode | GPS |
| Power consumption | ≤10W |
| Communication Modules | GPRS(900Mhz/1800Mhz), or CDMA(800Mhz) |
| WIFI | Supporting 802.11n/b/g standards,150Mbps,2.4Ghz |
| Union Pay | Compatible for PBOC3.0 Union Pay card |
| Upgrading | Connect USB to PC, upgrade with GPRS |
| Data collection | WIFI, GPRS, USB |
- Micro-payments solutions for transit (Bus, MRT, LRT);
- Micro-payments solutions for taxi;
- Micro-payments solutions for motoring (ERP, parking);
- Micro-payments solutions for retail (Super market,store,theater) and other services.
